angle flanges

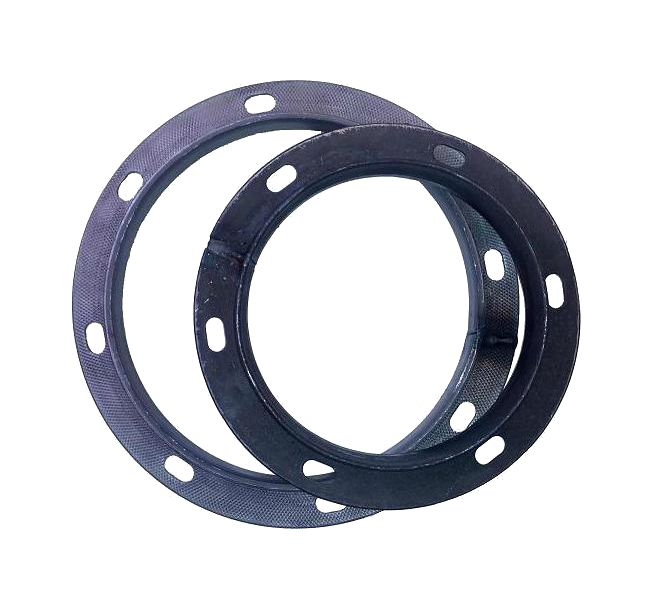

Angle flanges are steel rings widely used to join two lengths of conveyor tubes together. We stock a variety of common sizes are able to order specialized sizes, styles, and even flanges made of stainless steel material. We handle both flanges with or without punched holes and flanges with varying thickness are made to order items.
In Stock:
| Part No | Description |
|---|---|
| AF6 | 6" x 1/8" AF w/ holes |
| AF7 | 7" x 1/8" AF w/ holes |
| AF8 | 8" x 1/8" AF w/ holes |
| AF10 | 10"x 1/8" AF w/ holes |
| AF12 | 12"x 3/16" AF w/ holes |
| AF17 | 17"x 1/8" AF w/ holes |
ANGLE FLANGES
6" - 50" AVAILABLE. 6" - 17" IN STOCK.| ORDER SIZE | ID | H | G | BC BOLT CIRCLE | BOLT SIZE | # OF HOLES | APPROX WT LBS |
| 6" | 6-1/8" | 1-1/4 | 11 | 7-1/2" | 3/8 | 6 | 1.6 |
| 7" | 7-1/8" | 1-1/4 | 11 | 8-1/2" | 3/8 | 6 | 1.9 |
| 8" | 8-1/8" | 1-1/4 | 11 | 9-1/2" | 3/8 | 8 | 2.1 |
| 9" | 9-1/8" | 1-1/4 | 11 | 10-5/8" | 3/8 | 6 | 2.4 |
| 10" | 10-1/8" | 1-1/4 | 11 | 11-1/2" | 3/8 | 6 | 2.6 |
| 11" | 11-1/8" | 1-1/4 | 11 | 12-3/4" | 3/8 | 6 | 2.9 |
| 12" | 12-3/16" | 1-1/2 | 11 | 13-13/16" | 3/8 | 12 | 3.9 |
| 13" | 13-3/16" | 1-1/2 | 11 | 15" | 3/8 | 8 | 4.2 |
| 14" | 14-3/16" | 1-1/2 | 11 | 16" | 3/8 | 8 | 4.5 |
| 15" | 15-3/16" | 1-1/2 | 7 | 17" | 3/8 | 8 | 7.1 |
| 16" | 16-3/16" | 1-1/2 | 7 | 18" | 3/8 | 8 | 7.5 |
| 17" | 17-3/16" | 1-1/2 | 7 | 19" | 3/8 | 8 | 8 |
| 24" | 24-3/16" | 1-1/2 | 7 | 25-3/4" | 3/8 | 8 | 11.1 |
